Element Helix HD Compact 2-12×42 Raptr-1F Rifle Scope
$1,299.95
In stock with local supplier. Ships in 6-10 days.
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description

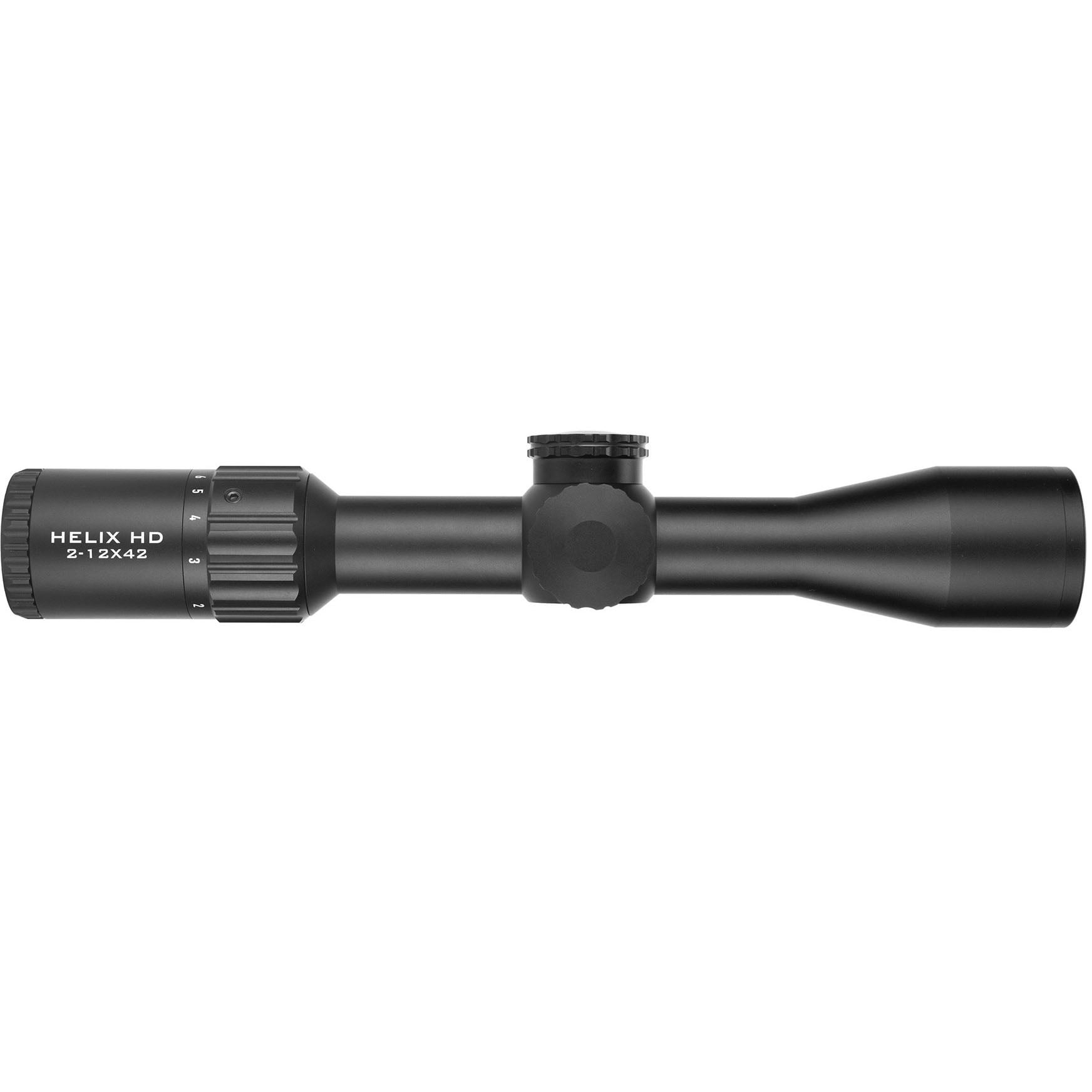

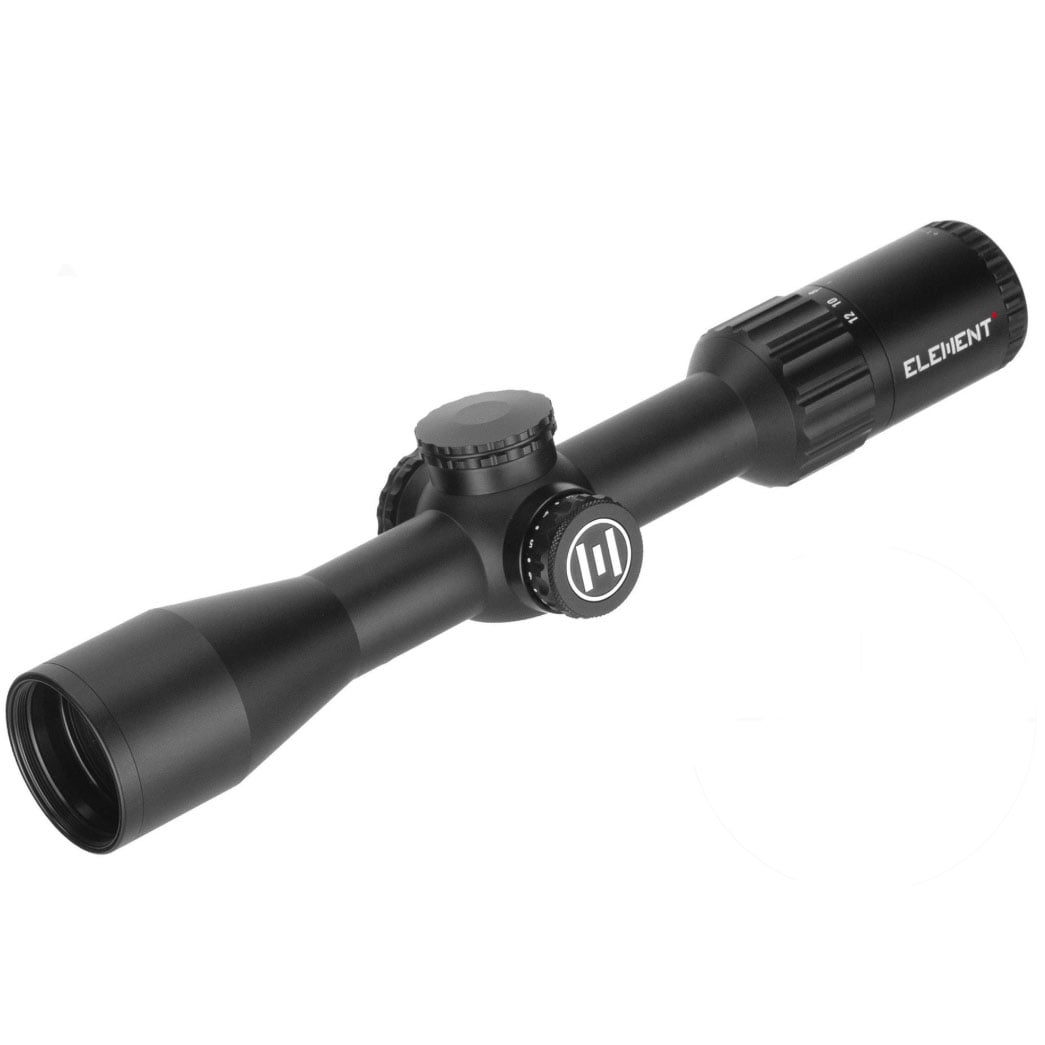

Element Helix HD Compact 2-12×42 Raptr-1F Rifle Scope

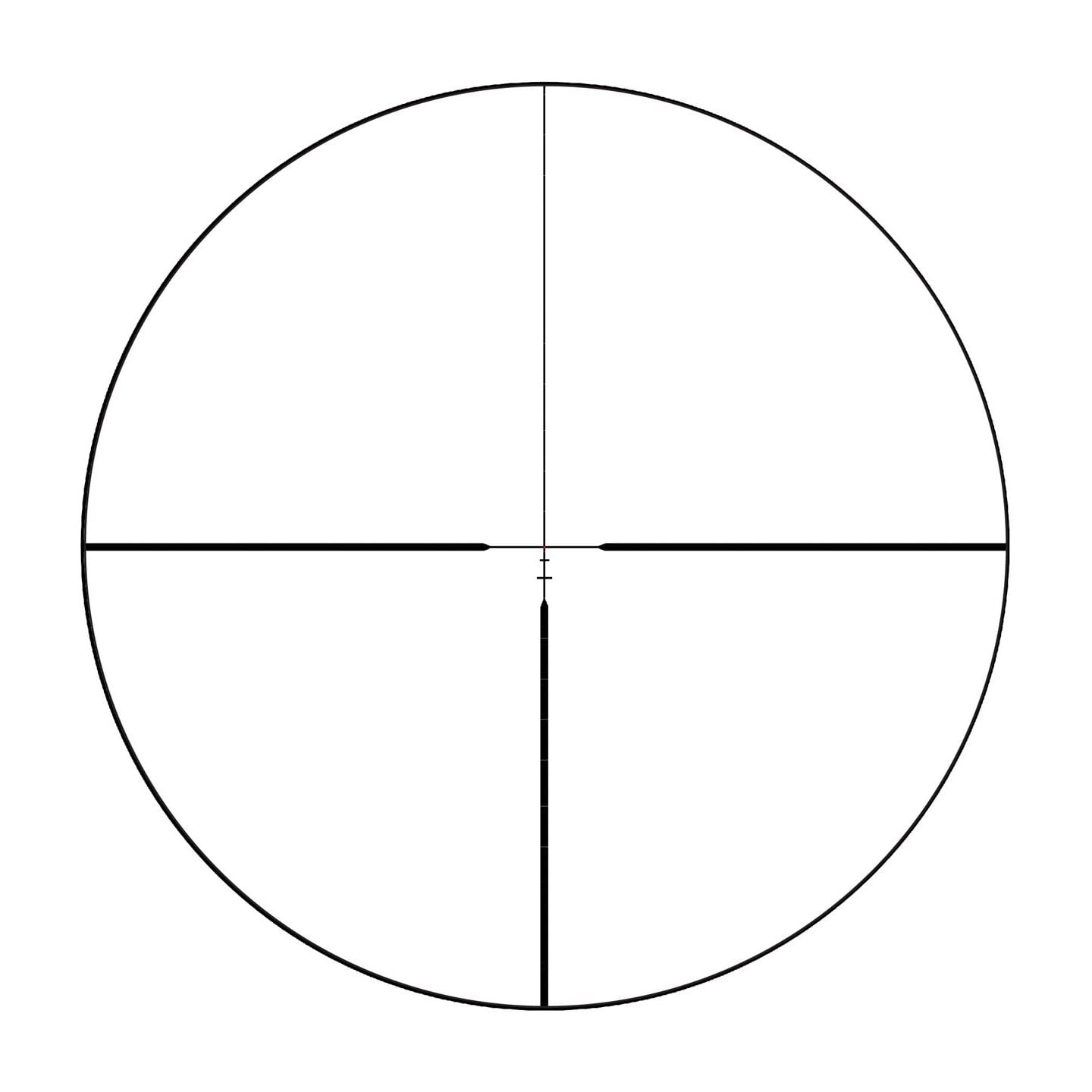

The Element HELIX HD COMPACT is a versatile hunting optic designed with form, clarity and reliability in mind. The 2-12 HD optical system provides a broad zoom range for close to intermediate distances, and the RAPTR-1F reticle with fiber optic illumination ensures a crisp, uncluttered image for targeting in a variety of light conditions and ranges. Capped turrets keep critical components sealed and shielded, and as with all Element Riflescopes, their Platinum Warranty has you covered for life!
Features:
- 30mm Main Body Tube
- 6x Zoom Optical System
- Ultra Compact, Lightweight design
- Fiber Optic Illumination
- Aircraft Grade Aluminum Construction
- Advanced Fully Multi-Coated Lenses with HD Glass
- Capped, Tool-Free Resettable Turrets
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth, Throw Lever & Clear Lens Caps Included
Specifications:
| Magnification Range | 2–12x |
| Tube Diameter | 30 mm |
| Objective Lens Diameter | 42 mm |
| Exit Pupil | 9.5–3.5 mm |
| Eye Relief | 97 mm (3.8″) |
| Field of View | 63 ft – 10.5 ft @ 100 yds (21–3.5 m @ 100 m) |
| Click Value | 1/4 MOA (25 MOA / revolution) |
| Elevation Adjustment Range | 135 MOA |
| Windage Adjustment Range | 135 MOA |
| Parallax | Fixed @ 100 yd |
| Length | 12.5″ / 318 mm |
| Weight | 21.7 oz / 615 g |
Additional information
| Adjustment Click Value | 1/4 MOA |
|---|---|
| Adjustment Type | MOA |
| Focal Plane | SFP (Second Focal Plane) |
| Illumination | No |
| Maximum Magnification | 12x |
| Minimum Magnification | 2x |
| Objective Lens Diameter | 40-49mm |
| Optic Brand | Element Optics |
| Reticle | Duplex |
| Tube Diameter | 30mm |
Brand
Element
