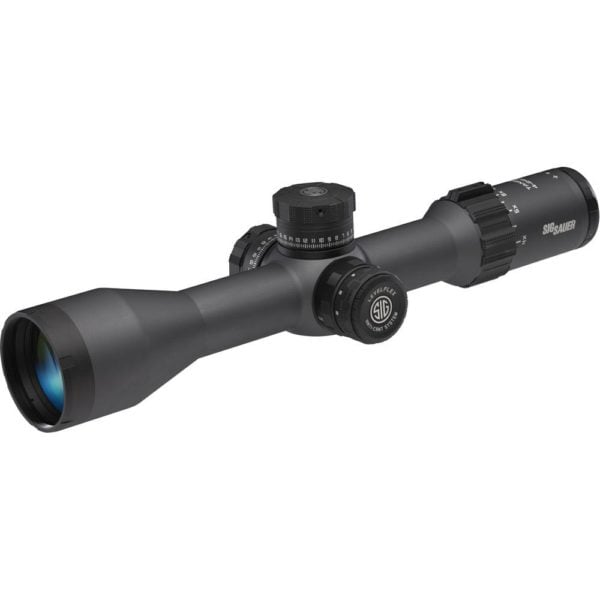

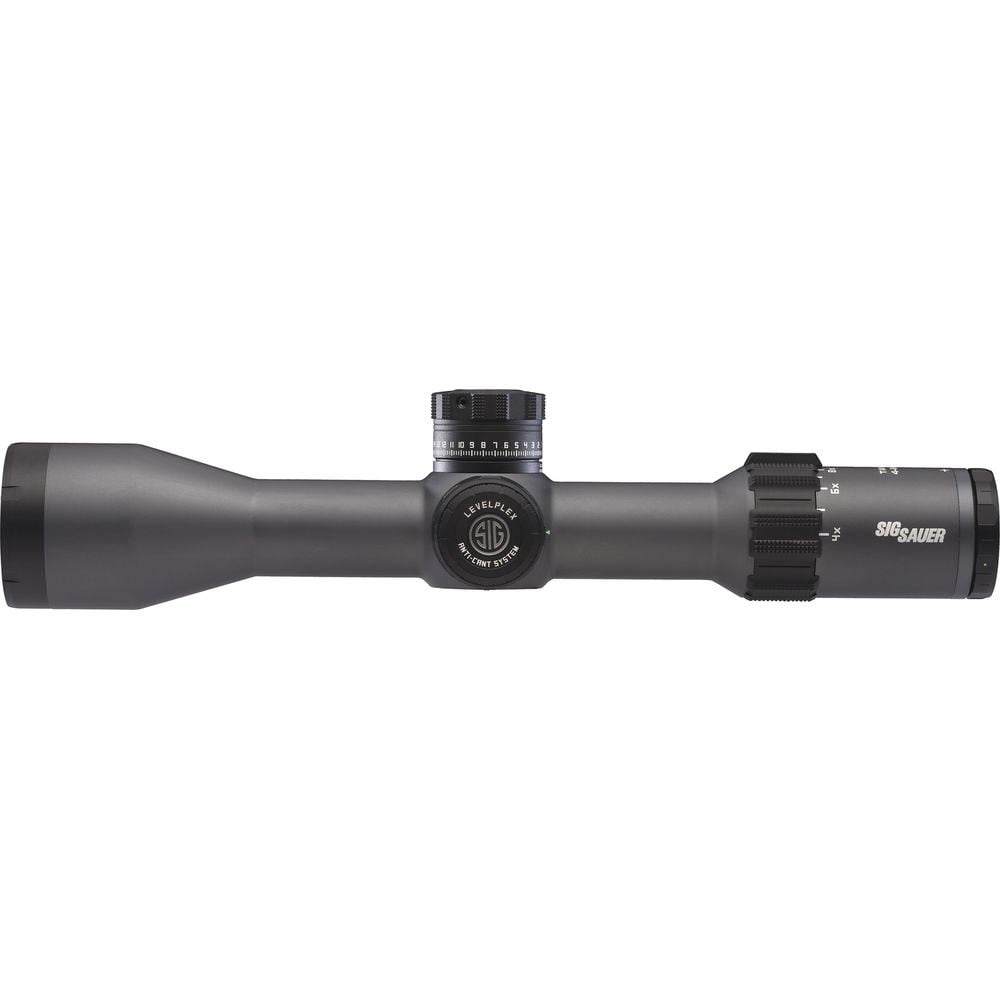

SIG TANGO6 4-24X50MM MRAD Milling Reticle
$3,859.95
In stock
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description
SIG TANGO6 4-24X50MM MRAD Milling Reticle
- MRAD Milling Reticle, 1st FP
- 34mm Diameter Maintube
- 1/10 MRAD Impact Point Correction
- 23.2 MRAD Windage/Elevation Adjustments
- Tactical, Finger-Operated Turrets
- LockDown Zero System
- Custom SIG Ballistic Turret (SBT)
- Aluminum Alloy Housing
- HDX Optics: HD/HT Extra-Low Dispersion
- Waterproof and Fogproof
Sig Sauer outfitted their battle-ready 4-24×50 TANGO6 Side Focus Tactical Riflescope with superior quality fully multi-coated optics and construction. Its HDX optics are made of high definition (HD), high-transmission (HT), and Extra-Low Dispersion glass to provide true color and maximize resolution and transmission. Another highlight of this riflescope is its dedicated MRAD Milling reticle, which is located in the 2nd focal plane and offers a variable illumination system. It is enhanced with their proprietary Motion-Activated Illumination function (MOTAC), which powers up brightness when it senses motion and powers the brightness down when at rest. The reticle features a full-field illuminated crosshair, no posts, and an extensive system of horizontal and vertical markings. Its entire area between the posts is illuminated by a brilliant red light with 7 brightness levels for daytime and 2 settings for Night Vision devices.
To endure the toughest battlefield conditions, the 34mm maintube is machined from a single piece of aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 23.2 MRAD adjustment ranges with 1/10 MRAD increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features precision tactical finger-operated knob with a fine diamond knurling and a slit read-out facing the ocular. The SIG Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with a fine diamond knurling for a slip-free grip, including a side focus parallax corrector and a fast focus eyepiece. The eyepiece has a low-profile zoom lever with a bright green mark for visibility.
MRAD Milling Reticle
- 1st focal plane
- Full-field illuminated crosshair with no posts
- Extensive system of vertical and horizontal markings
- LevelPlex Digital Anti-Cant System is an integrated digital level that is accurate to +/- 0.5°
- 7 daytime illumination brightness settings
- 2 Night Vision illumination settings
Optical Performance
- 6x Super-Zoom Advanced Optics System
- Fully multi-coated HDX optics
- High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses deliver true color and enhance resolution
Use and Handling
- 1/10 MRAD impact point correction
- 23.2 MRAD windage and elevation range
Construction
- 34mm single-piece maintube
- Aluminum alloy housing
- Tactical finger-operated turrets
- T120 tactical elevation turret with 120 clicks per rotation
- LockDown Zero System
- Resettable zero, zero-stop
- Auto-locks down at zero
- Custom SIG Ballistic Turret (SBT) laser-etched elevation dial
- Side focus parallax corrector knob
- Fast focus eyepiece
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
| Magnification | 4 to 24x |
| Objective Lens Diameter | 50 mm |
| Field of View | 4x: 24.7′ @ 100 yd / 8.2 m @ 100 m 24x: 4.6′ @ 100 yd / 1.5 m @ 100 m |
| Exit Pupil Diameter | 4x: 11.6 mm 24x: 2.1 mm |
| Eye Relief | 3.4 to 3.7″ / 84 to 93 mm |
| Reticle Type | MRAD Milling Reticle (First Focal Plane) |
| Filter Thread | M52 x 0.75 |
| Impact Point Correction | 1/10 MRAD per Click |
| Windage Adjustment | 23.2 MRAD |
| Elevation Adjustment | 23.2 MRAD |
| Water Resistance | IPX7 |
| Fogproof | Yes |
General
| Maintube Diameter | 34 mm |
| Battery | 1 x CR2032 |
| Dimensions | Length: 13.6″ / 34.6 cm |
| Weight | 2.5 lb / 1.1 kg |
Additional information
| Optic Brand | SIG |
|---|---|
| Reticle | MIL-DOT/MRAD |
| Focal Plane | FFP (First Focal Plane) |
| Tube Diameter | 34mm |
| Minimum Magnification | 4x |
| Maximum Magnification | 24x |
| Objective Lens Diameter | 50-59mm |
| Adjustment Type | MIL/MRAD |
| Adjustment Click Value | 0.1 MIL |
| Illumination | Yes |
