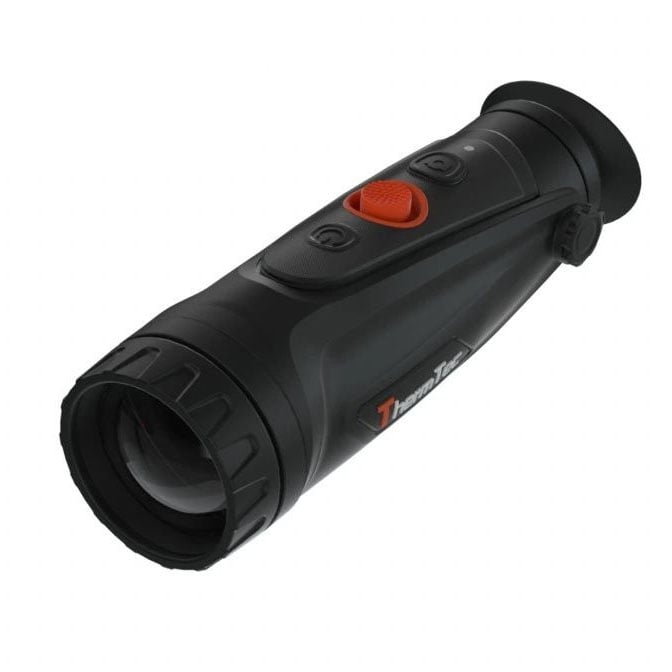

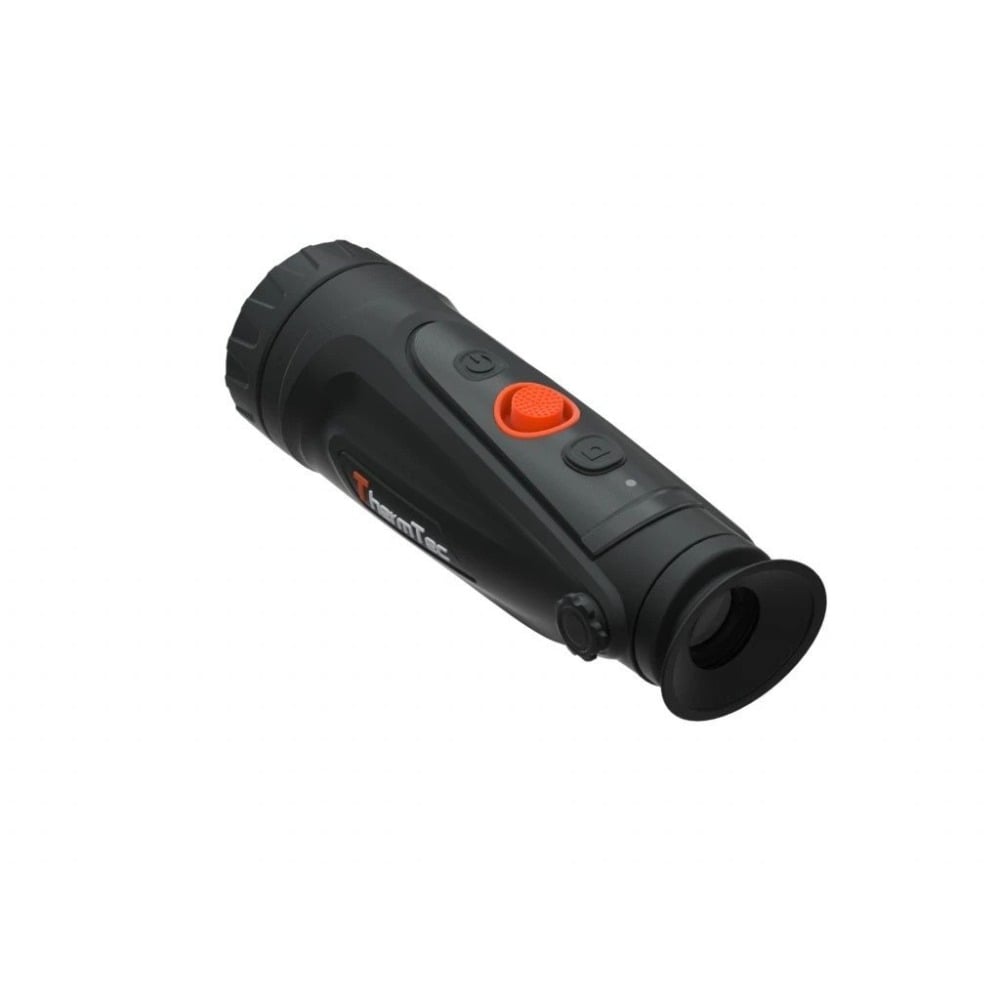

ThermTec CP635 Cyclops Pro 35mm 50hz Handheld Thermal Monocular
$4,499.95
Out of Stock
Email when available
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description
ThermTec CP635 Cyclops Pro 35mm 50hz Handheld Thermal Monocular
The ThermTec Cyclops Pro series redefines thermal monocular performance by integrating a 12μm uncooled VOx infrared detector with a 1024×768 OLED HD display and AI-enhanced imaging. Designed for both casual and professional users, it delivers clear visuals even in total darkness. The CP635 model combines ergonomic design, real-time app notifications, advanced image modes, and intuitive joystick controls to offer an unmatched user experience—day or night.
Features:
- =25mK NETD Sensitivity – Upgraded thermal sensor captures fine detail, even when the target closely matches the background temperature.
- High-Resolution OLED Display – 1024×768 OLED screen delivers sharp, vivid images and smooth transitions for perfect detail recognition.
- AI Ranging with Target Type & Size Setting – Deep-learning based distance measurement with improved accuracy using customizable target data.
- 1.0–6.0X High Precision Zoom – Smooth HD zoom ensures crisp image quality at every magnification level.
- Smart Joystick Control – Intuitive navigation lets you switch color palettes, zoom, and access settings with simple gestures.
- WDR Mode – Ideal for high-contrast environments.
- Object Mode – Focused clarity on target objects.
- Target Outline Mode – Highlights heat signatures for precise identification (Cyclops Pro only).
- Long-Lasting Battery Life – Up to 12 hours of continuous operation with built-in dual 18650 lithium batteries.
- Two-Way Wi-Fi + App Integration – Real-time image transmission and notifications via the “Smart Thermal” app keep you informed and distraction-free.
- Ergonomic & Balanced Design – Engineered for comfortable handheld use, ensuring balance and control during extended observation.
- Durability Built-In – IP67 waterproof, dustproof, and 1m drop-resistant—ready for extreme weather and rugged terrain.
- Photo/Video/Playback Functions
- 3D Noise Reduction + IDE/HDR Image Enhancement
- GPS Functionality
- Heat Track Mode
- 6+ Reticle Options
- Diopter Control: -5 ~ +5
Specifications:
| Model | ThermTec CP635 Cyclops Pro |
| Detector Type | VOx Microbolometer |
| Resolution | 640×512 |
| Pixel Pitch | 12µm |
| NETD | =25mK @ 300K |
| Frame Rate | 50Hz |
| Spectral Range | 8–14µm |
| Lens (Manual Focus) | 35mm / F1.0 |
| Field of View | 12.5° × 10° |
| Magnification | 2.0x (1–6x Digital Zoom) |
| Color Palettes | 5+ |
| Image Enhancement | IDE, HDR, 3D Noise Reduction |
| Display | 1024×768 OLED (8 modes) |
| Eye Distance | 40mm |
| Diopter Control | -5 to +5 |
| Language | English |
| Reticle | 6+ Styles, Adjustable Coordinates |
| Memory | 16GB |
| AI Distance Measurement | Yes |
| Photo/Video/Playback | Yes |
| Heat Track | Yes |
| GPS | Yes |
| Battery Type | Built-in Dual 18650 Li-ion |
| Battery Life | Up to 12 Hours |
| Type-C Interface | Charging, Data Transfer, Analog Video Output |
| Wi-Fi | Two-Way Wi-Fi; APP Remote Control |
| Operating Temperature | -20°C to +55°C |
| Protection Level | IP67, 1m Drop Resistance |
| Weight | 550g (with battery) |
| Dimensions | 67 × 63 × 190 mm |
| Included Accessories | Wrist Strap, Plush Bag, USB Data Cable, Analog Video Cable, User Manual |
Additional information
| Optic Brand | THERMTEC |
|---|
Brand
Thermtec
