THERMTEC ARES 660L-RF 2.0
$7,199.95
In stock with local supplier. Ships in 6-10 days.
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description

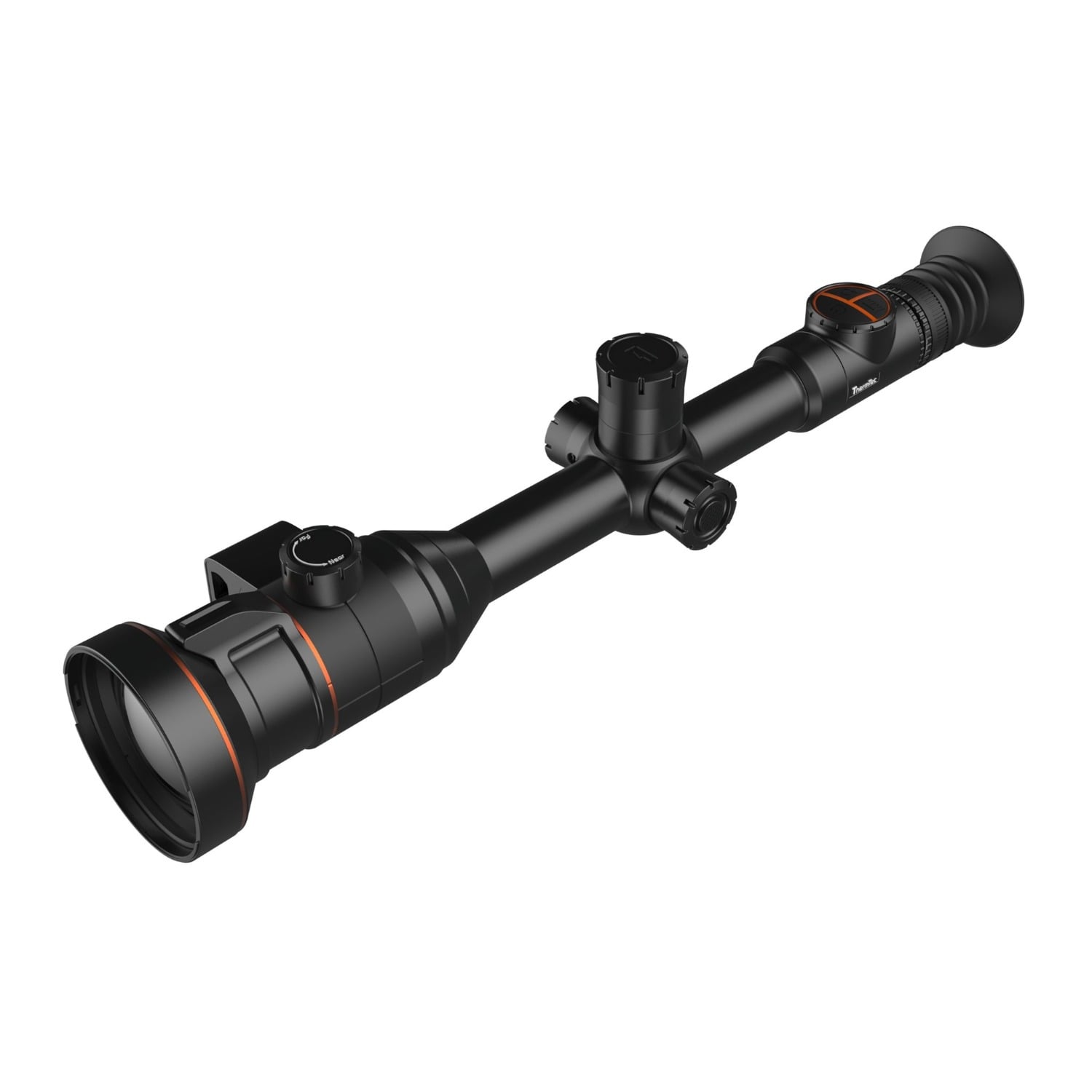

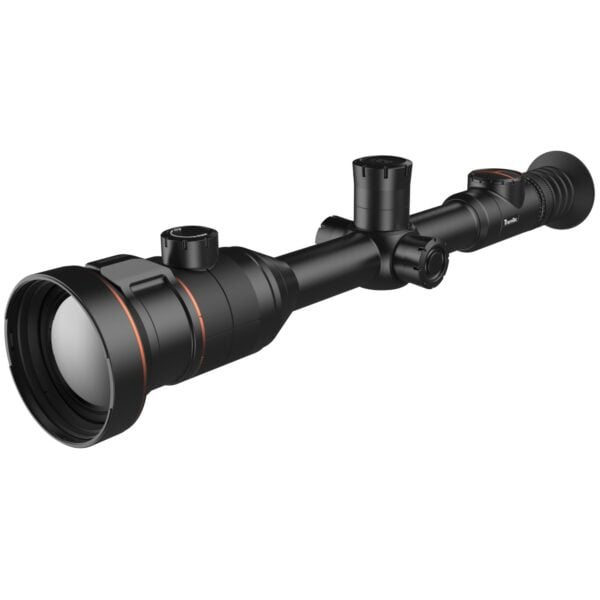

THERMTEC ARES 660L-RF 2.0
The ThermTec ARES 660L 2.0 is a compact yet powerful thermal riflescope engineered for hunters seeking precision shooting performance across a wide range of environments. Featuring an integrated 1000m laser rangefinder, advanced ballistic calculation, and a dual field-of-view optical system, it delivers exceptional accuracy for both close-range observation and long-distance target engagement.
Powered by a high-performance 640×512 thermal sensor with ultra-sensitive NETD ≤18mK performance, the ARES 660L 2.0 captures exceptional image detail and thermal contrast. Combined with intelligent AI calibration, long battery life, and advanced shooting tools, it provides hunters with a reliable and highly capable thermal solution for day or night operations.
Features:
- 640×512 thermal sensor with ultra-sensitive NETD ≤18mK performance.
- Integrated 1000m laser rangefinder with ±1m accuracy at 100m.
- Built-in ballistic calculator for enhanced long-range shooting accuracy.
- Dual field-of-view 20mm/60mm objective lens system.
- Smooth field-of-view switching with redesigned one-handed control lever.
- 3x optical zoom capability through dual-lens configuration.
- Up to 4x digital zoom with smooth and rapid zoom adjustment.
- Advanced AI Calibration technology for improved image stability in changing conditions.
- Self-learning image optimization that improves performance with continued use.
- Combined internal and replaceable battery system providing up to 16 hours of operation.
- Fast 3-second startup for rapid target acquisition.
- Top-mounted rotary focus control for improved ergonomics and precision.
- ThermTec Outdoor App integration with ballistic recommendations and settings adjustment.
- Compact integrated laser rangefinder design.
- Soundless adjustable lens cover for silent field operation.
- High-resolution 0.39-inch AMOLED display.
- Picture-in-Picture (PIP) mode for enhanced target observation.
- 5 selectable colour palettes.
- 5 zeroing profiles for multiple rifles or ammunition setups.
- Automatic and manual zeroing functions.
- Freeze Zeroing capability.
- Audio recording support.
- 64GB built-in memory for image and video storage.
- Hotspot connectivity for wireless device connection.
- IP67 waterproof construction.
- Detection range up to 3000m.
- Suitable for recoil energies up to 6000J.
Specifications:
| Model | ThermTec ARES 660L 2.0 |
| Detector Type | Uncooled Microbolometer |
| Resolution | 640 × 512 |
| Pixel Pitch | 12µm |
| NETD | ≤18mK |
| Spectral Range | 8–14µm |
| Frame Rate | 50Hz |
| Detection Range | 1000m / 3000m |
| Objective Lens | 20mm / 60mm, F1.0 |
| Field of View | 21.7° × 17.4° / 7.3° × 5.9° |
| Field of View at 100m | 38.4 × 30.7m / 12.8 × 10.2m |
| Optical Magnification | 1.1× / 2.8× |
| Digital Zoom | 1.0× – 4.0× Smooth & Rapid Zoom |
| Eye Relief | 50mm |
| Exit Pupil | 6mm |
| Diopter Adjustment | ±5D |
| Reticle Options | 7 |
| Reticle Colours | Black, White, Red, Green, Blue |
| Display Type | AMOLED |
| Display Resolution | 1024 × 768 |
| Display Size | 0.39 inch |
| Colour Palettes | 5 |
| Maximum Recoil Power | 6000J |
| Mounting System | Standard 30mm Rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto Zeroing | Yes |
| Manual Zeroing | Yes |
| Zeroing Profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-Picture | Yes |
| Laser Rangefinder | 1.8mrad @ 1000m |
| Ballistic Calculator | Yes |
| Image Calibration | Manual / Auto |
| Photo / Video Playback | Yes |
| Built-in Memory | 64GB |
| USB Interface | USB Type-C Data Transfer |
| Hotspot | Yes |
| Battery Type | Replaceable 18650 or 18500 Battery plus Built-in 18650 Battery |
| Battery Reverse Connection Protection | Yes |
| Battery Life | Up to 16 Hours |
| Operating Temperature | -20°C to +50°C |
| Protection Rating | IP67 |
| Weight | 1117g |
| Dimensions | 435.7 × 103.9 × 92.9 mm |
| Included Accessories | 2× Standard 30mm Rings, Eyeshade, USB Data Cable and Accessories |
Additional information
| Optic Brand | THERMTEC |
|---|
Brand
Thermtec
