Guide TD633L Handheld Thermal Monocular 35mm 50Hz
$3,699.95
Out of Stock
Email when available
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description

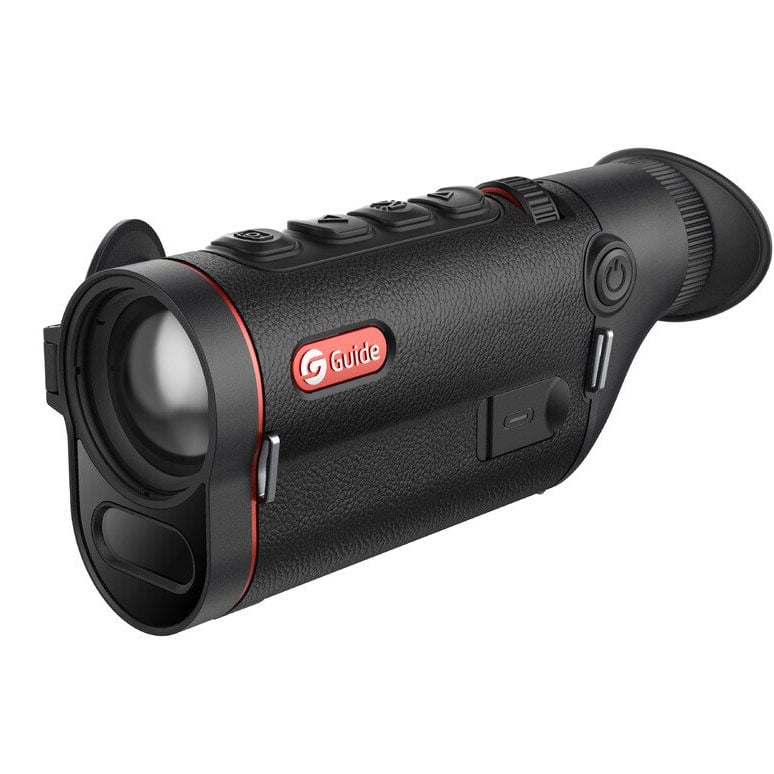

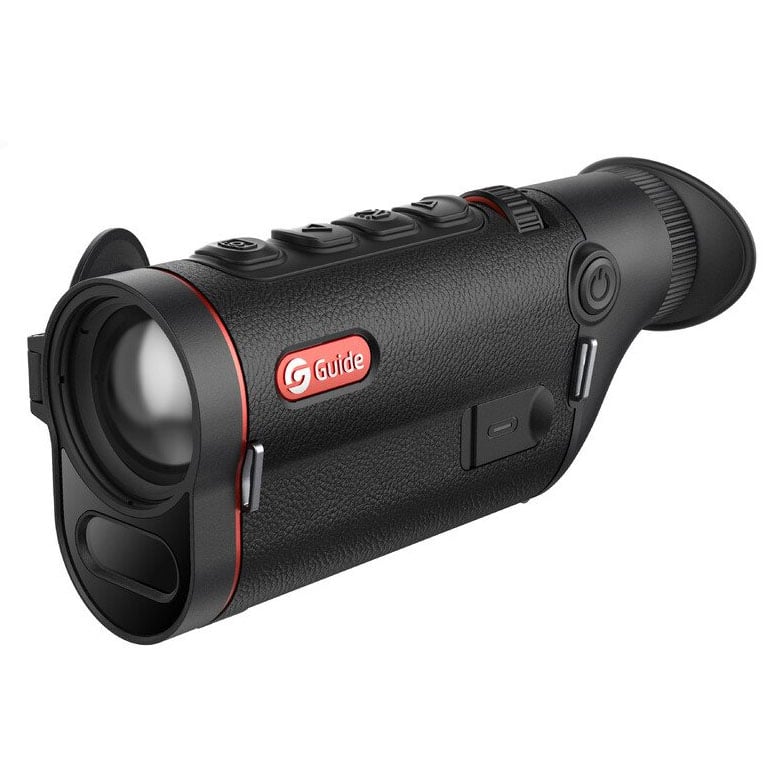

Guide TD633L Handheld Thermal Monocular 35mm 50Hz
Meet the all-new Guide TD Gen3 Series — engineered for hunters who demand precision, power, and performance in the palm of their hand.
Features:
- High-sensitivity detector, NETD down to 20mK: The TD Gen3 LRF Series features 12µm infrared detector with 640×512 and 400×300 resolutions, and offers 35mm lens, delivering impressively crisp images even in complete darkness.
- Ambidextrous design, one-handed operation: The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.
- Fine-tuning focus,scroll with fingers: The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.
- Upgraded visuals,enlarged AMOLED display: Building on the previous generation, the TD Gen3 LRF Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.
- Built-in LRF, precise target distance: The built-in laser rangefinder module is seamlessly integrated into the device design, enhancing portability and practicality, with a maximum range of 1000 meters for precise target location.
- Extended battery life, uninterrupted power: During observation, exploration and stalking in the field, the TD Gen3 LRF Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.
- Smart recording, expanded built-in storage: The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.
Specifications:
| Sensor Type | Uncooled VOx Infrared Detector, 8 to 14 µm |
| Resolution | 640×512@12 µm |
| NETD | 20 mK |
| Frame Rate | 50 Hz |
| Objective Lens | 35 mm F1.0 |
| Field of View | 12.5°×10° |
| FOV at 100 m | 22 m × 17 m |
| Magnification | 1.8x ~ 14.4x |
| Detection Range | 1800 m / 1950 yd |
| Focus | Manual |
| Display Type | 0.36” AMOLED 1280×960 |
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Eye Relief: 20 mm; Diopter: -6 to +6; Zoom: 13.8x |
| Laser Rangefinder | 1000 m / 1090 yd |
| WiFi | 2.4G / 5G |
| Interface | USB-C |
| Recording Function | Photo / Video (with audio) |
| Memory Capacity | 32 GB |
| Battery Type | Replaceable 18650 Battery |
| Operating Time | 10 hours |
| Operating Temperature | ‑20°C to 50°C / ‑4°F to +122°F |
| Encapsulation | IP67 |
| Weight | 376 g / 13.26 oz |
| Size | 159×54×74 mm / 6.26×2.13×2.91″ |
| Included Accessories | Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, AU, EU), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
Additional information
| Optic Brand | Guide Sensmart |
|---|
Brand
Guide Sensmart
Wuhan Guide Sensmart Tech Co., Ltd. was established in 2016. As a wholly-owned subsidiary of Guide Infrared (002414), Guide Sensmart focuses on the development, manufacture, and marketing of infrared thermal imaging products for commercial applications.
