EGW SMITH AND WESSON (S&W) REVOLVER PICATINNY RAIL
$99.95
In stock
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description

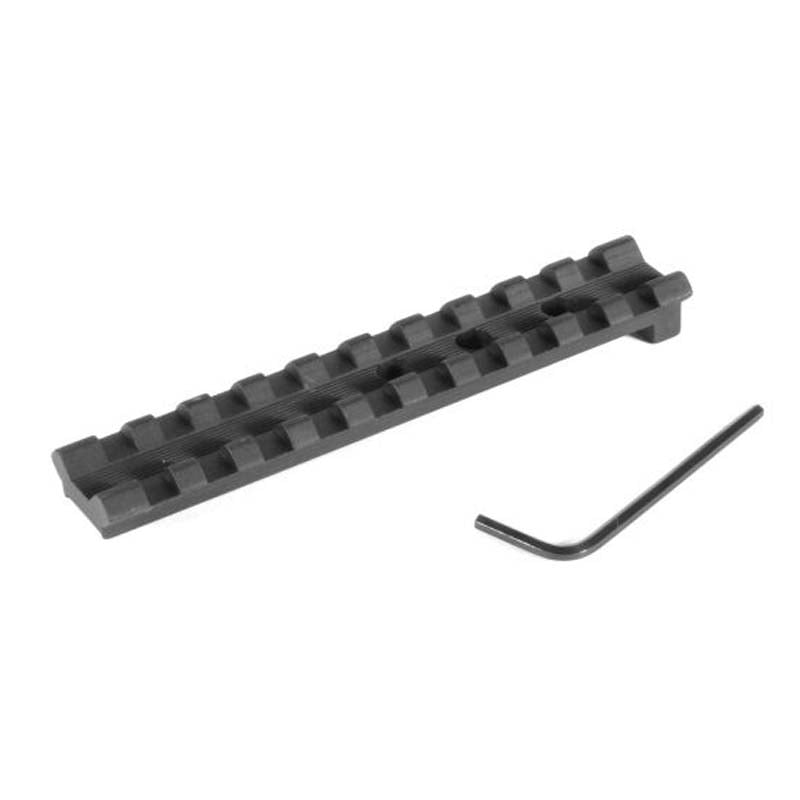

EGW SMITH AND WESSON (S&W) REVOLVER PICATINNY RAIL
Mounting Hardware is Included
This mount fits: Smith & Wesson Revolver
This mount will fit K, L, N, and X frames.
The bolt pattern on this mount fits factory drilled Smith & Wesson revolvers. The mount is also available undrilled, to accommodate unconventional bolt patterns.
Swing the cylinder out on your gun and look under the top strap. If you see the holes under the sight, through the top strap, your gun is factory drilled and tapped. Our mount fits snugly into the rear sight cut and has a recoil shoulder, unlike some mounts that are simply radiused to fit the top radius and do not go into the rear sight cut.
If your top strap is not already drilled and tapped (pictured above), the mount will not work with your gun. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
Specifications:
| Rail Type | One Piece Picatinny |
| Machined from | Domestic 6061 T6 Extruded Aluminum |
| Finish | Matte Black Anodizing |
| Overall Length | 4.306″ |
| Height | .4″ (Top of Receiver to Top of Picatinny) |
| Weight | 2 oz. |
| Quick Disconnect Ring Compatible | No |
| Ambidextrous | Yes |
| Torque Specs | 20 in/lbs |
| Mounting Hardware | #6-48 X 1/4 Screws and T-10 Bit Included |
Brand
EGW
Disclaimer
Please be aware that some firearm parts may require fitting and adjustment. While we strive to provide high-quality, compatible parts, individual firearm variations and manufacturing tolerances can necessitate some fitting and adjustment. If you are not confident in your ability to fit these parts, we highly recommend consulting a qualified gunsmith. It is essential to thoroughly check the fit and function of all parts before live firing. Delta Mike Ltd is not responsible for any damage caused by the incorrect installation or fitting of these parts.
