DILLON XL-750 RELOADING PRESS

Please Note: The calibre conversion kit is not included in the base price.

The Dillon XL750 is a high-speed progressive reloading machine designed to load the common rifle and handgun cartridges, from 17 Hornet through the common belted magnum cartridges in rifles, and 32 ACP through 500 S&W in handgun. Machine height from the bench is 32″ without the optional electric case feeder, 38 1/2″ with the electric case feeder installed.

• Electric Casefeeder
• Roller Handle
• Strong Mount
• Bullet Tray
• Powdercheck Die
• Low Powder Sensor
• Die set
• Calibre Conversion Kit

HOW DOES IT ALL WORK?

Introducing the new XL-750! Our most advanced reloader ever. See the video below for a brief overview and product highlights.

Included:

• 1 powder measure with standard large and small powder bars (small bar installed). The small bar throws from 2.1 to 15 grains of powder. The large bar throws from 15 to 55 grains of extruded powder or up to 60 grains of ball/spherical type powder.
• 1 primer system with large and small priming parts (appropriate size installed).
• 1 large and one small primer pick-up tube.
• Low Primer Alarm
• 1 loaded cartridge bin
• 1 tool head
• 1 powder die
• 1 set of standard Allen wrenches

You will also need (at a minimum):

• Calibre Conversion Kit (calibre conversion kit not included with base unit)
• Die set (dies are not included with the base unit)
• Powder scale
• Dial calliper
• Primer flip tray
• Case lube (for bottleneck cartridges)

We recommend you also purchase that you also purchase:

• Extra primer pick-up tubes, if loading more than 100 – 200 rounds per sitting.
• If you are loading more than 500 rounds per reloading session, then the RF-100 Electric Primer Filler is an accessory well worth considering.
• A machine cover to keep the unit dust-free.

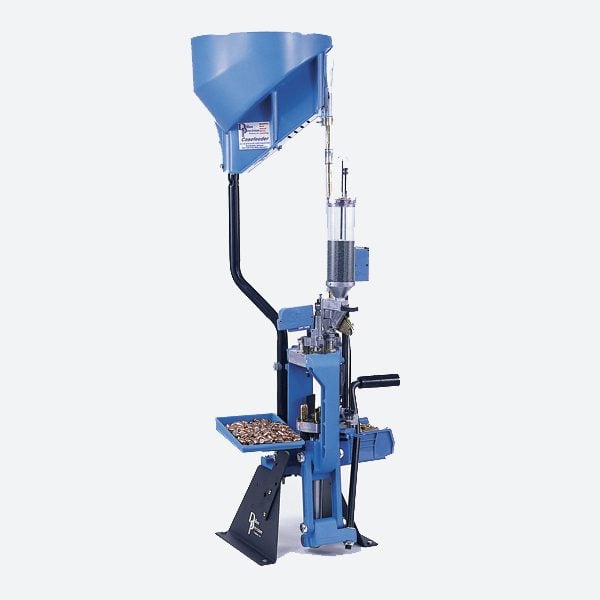

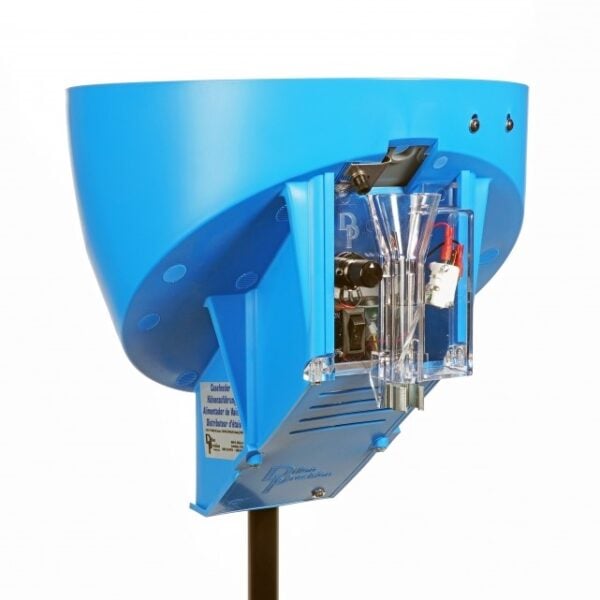

• An Electric Casefeeder

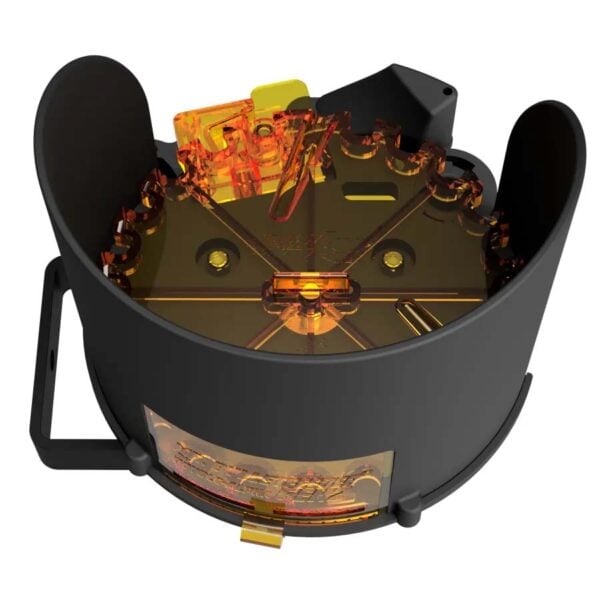

• A Mr Bulletfeeder

To change calibres, you will need:

• A Die set for the new calibre.
• A Caliber Conversion Kit.
• If you have the optional electric case feeder you may need a different case feed plate. Please refer to the calibre conversion chart in the Instruction Manual.
• If you are using the Mr Bulletfeeder you made need a calibre conversion.
• If you want to leave your dies preset, you’ll need the 750 Quick Change kit, which includes a powder measure, powder dies, tool head and a tool headstand. This allows you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier calibre changes.
