BCM Lower 1/3 Optic Mount for Aimpoint Micro T2
$299.95
Available to backorder. 3-12 month lead time.
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description

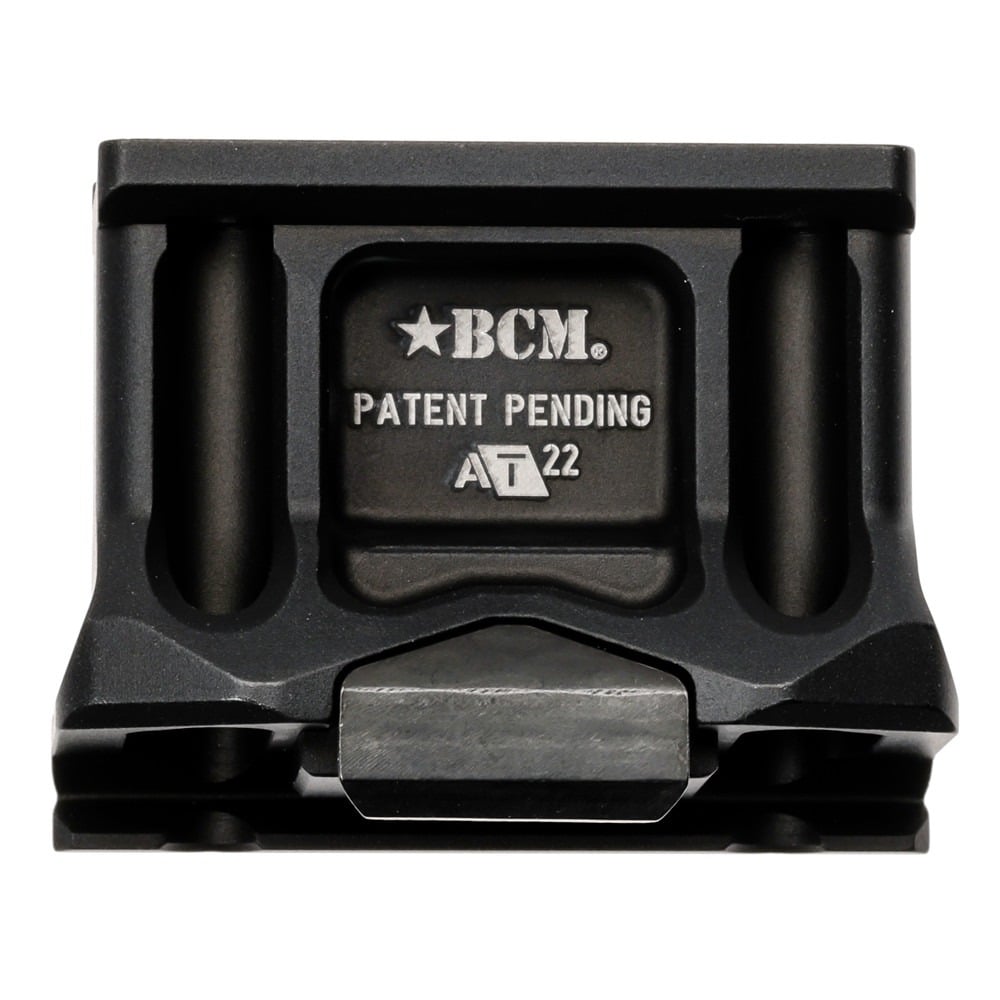

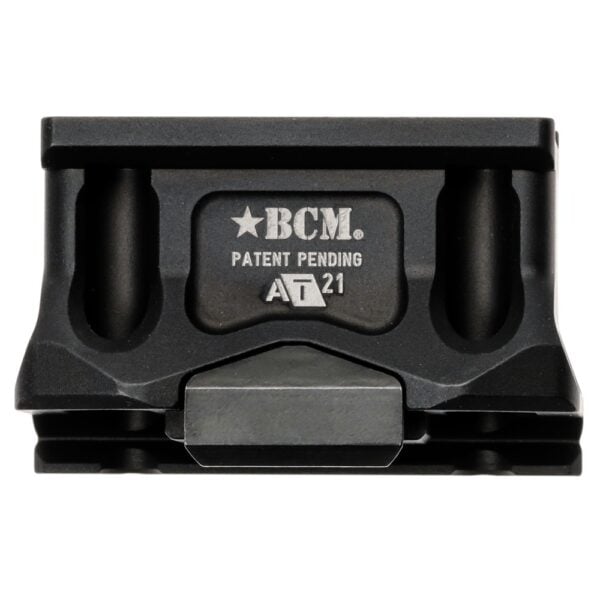

BCM Lower 1/3 Optic Mount for Aimpoint Micro T2
Capability in the face of the unexpected and catastrophic, the BCM® A/T™ Optic Mount is engineered for situations where absolute reliability is essential. Built in anticipation of a “no fail” shot, it delivers a secure and dependable mounting solution for your red dot optic.
Improving upon the Mil-Spec rail interface that has remained largely unchanged for more than 30 years, the BCM A/T Mount delivers exceptional zero retention when paired with a properly mounted optic. Its low-profile, snag-free design and simplified construction minimize potential failure points while maximizing strength for professional, tactical, and hard-use applications.
Each mount incorporates multiple integral recoil lugs to mitigate recoil and counter-recoil forces, helping preserve optic zero and ensure consistent shot placement. Precision-machined from 7075-T6 billet aluminum, every mount is hard coat anodized to Mil-A-8625F specifications, while the hardened steel clamp and nut are Nitride coated for superior durability and corrosion resistance.
The patented* Angled Torque™ (A/T) locking system uses a triangulating clamp design to generate approximately twice the clamping force on the Picatinny rail compared to traditional horizontal mounting interfaces under the same applied load. A serrated locking spring washer helps maintain torque in demanding field conditions, keeping the mount securely fastened.
Features:
- Patented* Angled Torque™ (A/T) mounting system.
- Approximately twice the Picatinny rail clamping force compared to legacy horizontal mounts under equivalent load.
- Exceptional zero retention for properly mounted red dot optics.
- Low-profile, snag-free design.
- Minimal component construction reduces potential failure points.
- Multiple integral recoil lugs help maintain optic zero under recoil.
- Precision-machined from 7075-T6 billet aluminum.
- Mil-A-8625F hard coat anodized finish.
- Hardened steel clamp and nut with Nitride coating.
- Serrated locking spring washer helps retain torque during hard use.
Specifications:
| Material | 7075-T6 billet aluminum |
| Finish | Mil-A-8625F hard coat anodized |
| Clamp Material | Hardened steel alloy |
| Clamp Finish | Nitride |
| Mounting System | Patented* Angled Torque™ (A/T) |
| Rail Compatibility | Mil-Spec Picatinny rail |
| Maximum Torque | 65 in-lbs |
| Optical Centerline (Aimpoint Micro T-2) | 1.63″ |
| Optical Centerline (Aimpoint CompM5) | 1.63″ |
| Optical Centerline (Aimpoint Duty RDS) | 2.06″ |
| Optical Centerline (Aimpoint CompM5S) | 2.22″ |
Brand
Bravo Company USA
