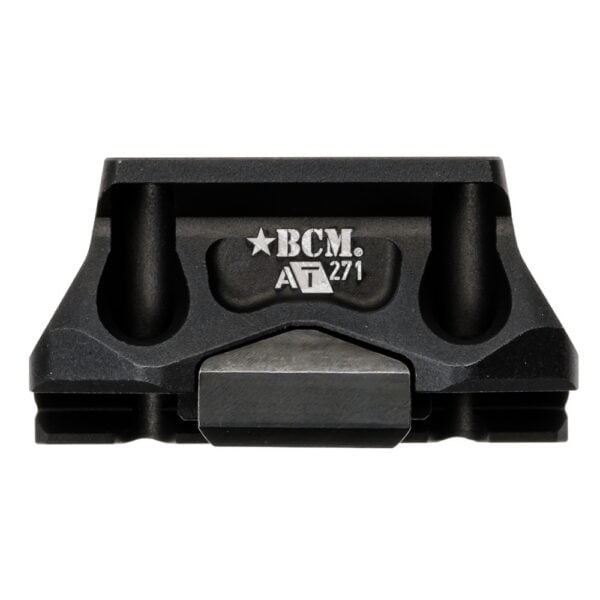

BCM 1/3 Lower Optic Mount for Trijicon MRO
$299.95
Available to backorder. 3-12 month lead time.
ASK US A QUESTION
Please send us your inquiry about this product using the below form. The Delta Mike team monitor this inbox periodically throughout the day.
Description
BCM 1/3 Lower Optic Mount for Trijicon MRO
Capability in the face of the unexpected and catastrophic, the BCM® A/T™ Optic Mount is engineered for situations where absolute reliability is essential. Built in anticipation of a “no fail” shot, it provides a rugged and dependable mounting solution for your red dot optic.
Advancing beyond the traditional Mil-Spec rail interface that has remained largely unchanged for over 30 years, the BCM A/T Mount delivers exceptional zero retention with a properly mounted optic. Its low-profile, snag-free design and minimal component construction create a stronger mount with fewer potential points of failure, making it ideal for demanding operational environments.
Multiple integral recoil lugs help mitigate recoil and counter-recoil forces to maintain optic zero and consistent shot placement. Precision-machined from 7075-T6 billet aluminum, each mount is hard coat anodized to Mil-A-8625F specifications, while the hardened steel clamp and nut feature a Nitride finish for enhanced durability and corrosion resistance.
The patented* Angled Torque™ (A/T) locking system utilizes a triangulating clamp design to generate approximately twice the clamping force on the Picatinny rail compared to traditional horizontal mounting interfaces when equal torque is applied. A serrated locking spring washer helps maintain torque and prevents hardware loosening during hard use.
Features:
- Patented* Angled Torque™ (A/T) mounting system.
- Approximately twice the Picatinny rail clamping force compared to legacy horizontal mounts under equivalent load.
- Outstanding zero retention for properly mounted red dot optics.
- Low-profile, snag-free design.
- Minimal component construction reduces potential failure points.
- Multiple integral recoil lugs help preserve optic zero.
- Precision-machined from 7075-T6 billet aluminum.
- Mil-A-8625F hard coat anodized finish.
- Hardened steel clamp and nut with Nitride coating.
- Serrated locking spring washer maintains torque in demanding conditions.
Specifications:
| Material | 7075-T6 billet aluminum |
| Finish | Mil-A-8625F hard coat anodized |
| Clamp Material | Hardened steel alloy |
| Clamp Finish | Nitride |
| Mounting System | Patented* Angled Torque™ (A/T) |
| Rail Compatibility | Mil-Spec Picatinny rail |

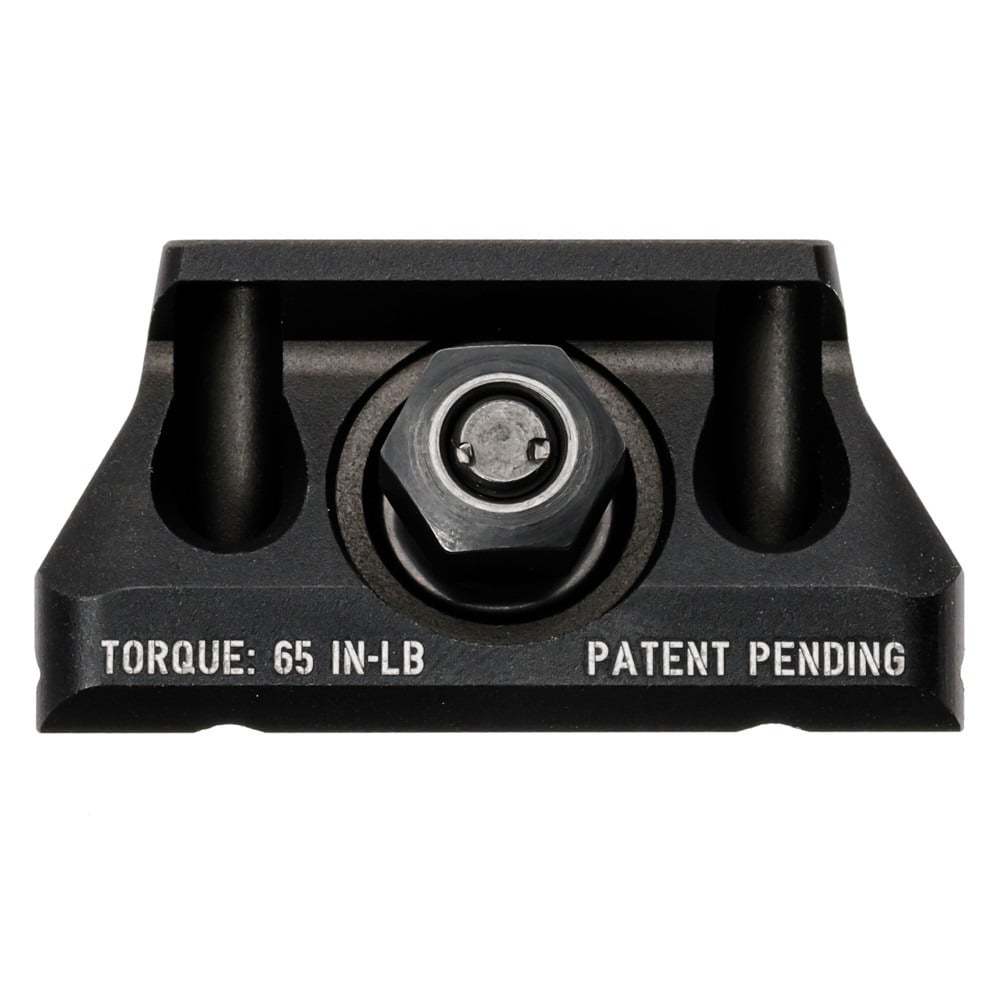

| Torque Specification | 65 in-lbs maximum |
| Optical Centerline | 1.63″ (Trijicon MRO) |
Brand
Bravo Company USA
